All-wheel-drive traction in a friendlier step-thru fat tire package
The EUNORAU FAT-AWD 3.0 is the step-thru branch of EUNORAU’s dual-hub fat tire platform, built for riders who want more climbing bite and loose-surface confidence than a single-motor cruiser can usually deliver without climbing onto a tall top tube. The exact official FAT-AWD 3.0 product page confirms a front 48V 500W hub motor paired with a rear 500W hub motor, a 48V 15Ah main battery, torque-sensor pedal assist, hydraulic disc brakes, and 26 x 4.0 inch Kenda Krusade Sport tires.
That hardware combination makes the bike easy to place honestly. This is not a lightweight pavement commuter pretending to be an adventure bike. It is a traction-first all-wheel-drive step-thru designed for mixed terrain, rougher access roads, sandier trailheads, ranch paths, campground riding, and riders who want easier mounting without giving up the planted feel of a true fat tire chassis.
This MBHQ draft is intentionally scoped to the two verified USA variants only: Maple / Step Thru and Raven / Step Thru.
48V 15Ah
500W + 500W
20 MPH
Up to 80 Miles
375 lbs
5'3" ~ 6'1"
Two hub motors give the FAT-AWD 3.0 its real reason to exist
The standout feature here is not just “more power” on paper. It is the way the front and rear hub motors split the work when the surface gets loose or the grade turns ugly. Instead of asking one rear wheel to do everything, the FAT-AWD 3.0 spreads traction across both ends of the bike, which can help the chassis feel steadier on dirt, gravel, wet grass, and other conditions where a single-drive fat bike can spin or bog down.
EUNORAU’s official spec block also confirms a torque sensor rather than a basic cadence-only setup, which should make pedal-assist pickup feel more connected to rider input. Add the thumb throttle for quick assistance on technical starts, and the bike lands as a pragmatic AWD utility machine rather than a gimmick build.
Step-thru access and fat-tire stability make it easier to live with day to day
The FAT-AWD 3.0 is still a substantial 26-inch fat tire bike, but the step-thru frame shape lowers the intimidation factor for riders who do not want to swing over a traditional high top tube every time they stop, load up, or restart on uneven ground. That matters for hunting access roads, waterfront launches, campground loops, and everyday rides where repeated mount-and-dismount convenience matters more than aggressive race-bike posture.
The official component list supports that use case with 26 x 4.0 inch tires, an adjustable comfort-oriented stem, hydraulic disc brakes with motor cutoff, integrated lighting, and a 375-pound total payload rating that frames the chassis as a real utility-capable e-bike rather than a style-first novelty.
More Features

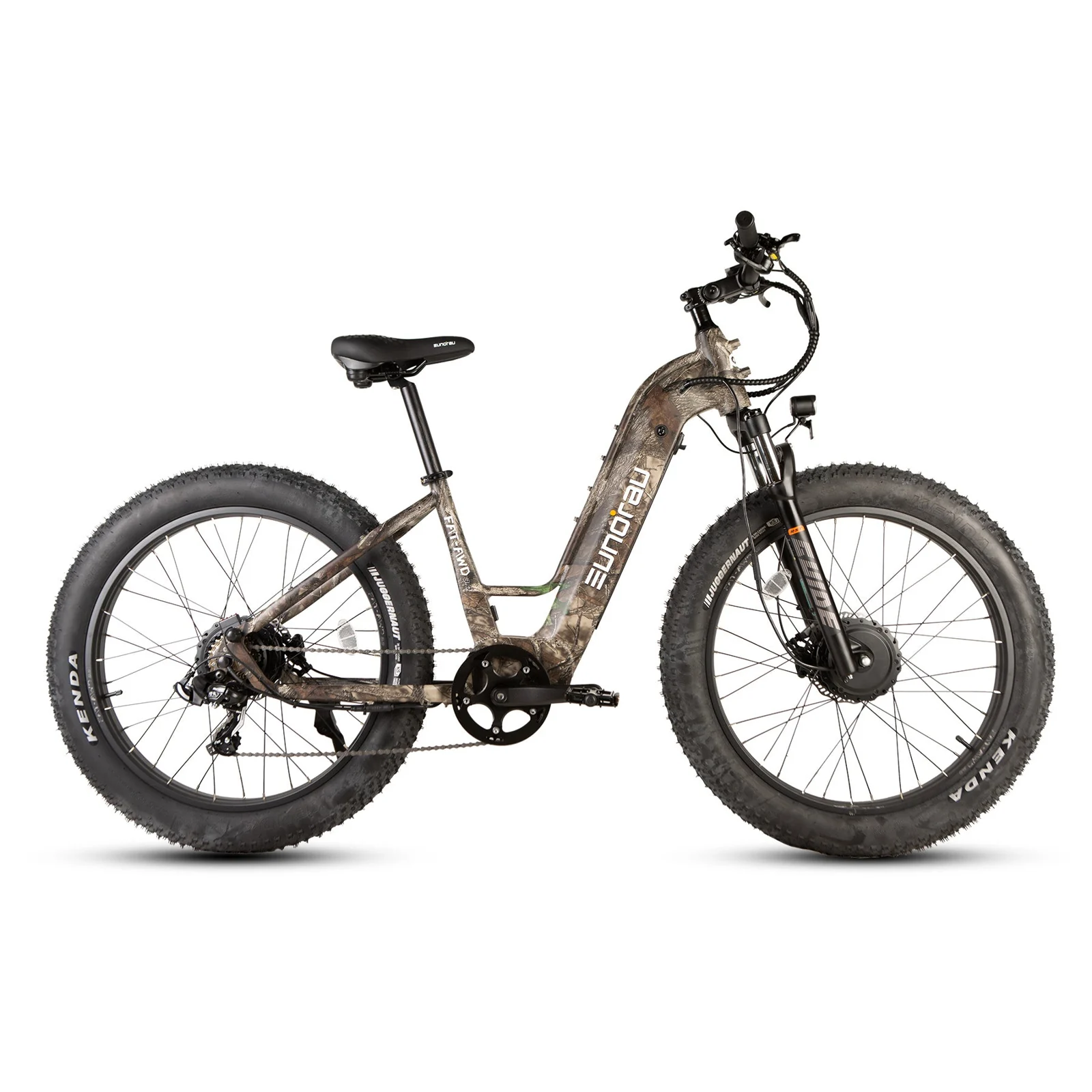

Verified Maple hero image
The Maple / Step Thru variant is one of the two canonical USA FAT-AWD 3.0 options and uses its own exact-color white-background hero image.

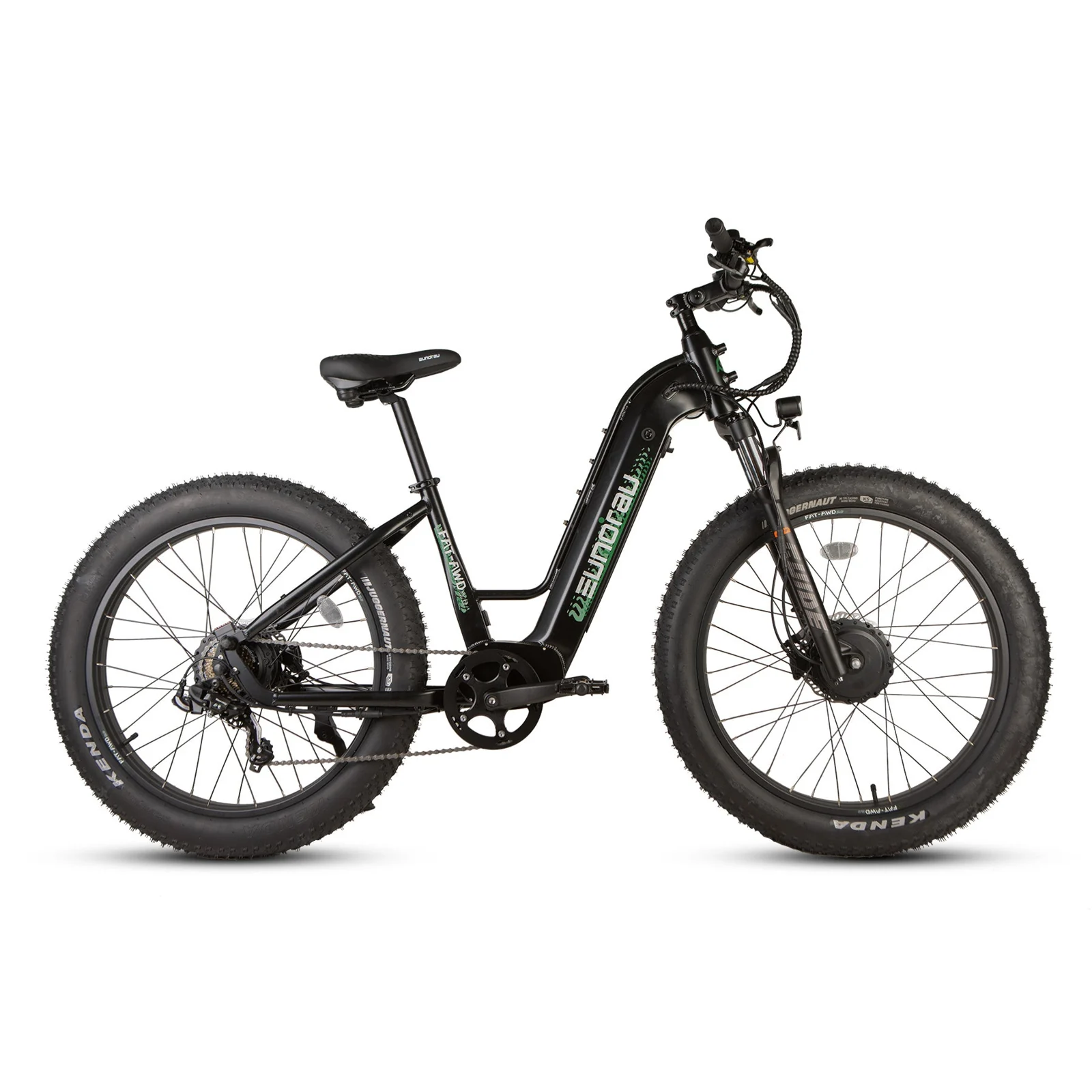

Verified Raven hero image
The Raven / Step Thru variant uses its own exact-color hero shot, keeping the Woo variation image mapping truthful instead of borrowing Maple photography.
Step-thru frame opening
The low central opening is the clearest physical distinction of this 3.0 SKU set, giving riders easier access than a traditional step-over fat bike.

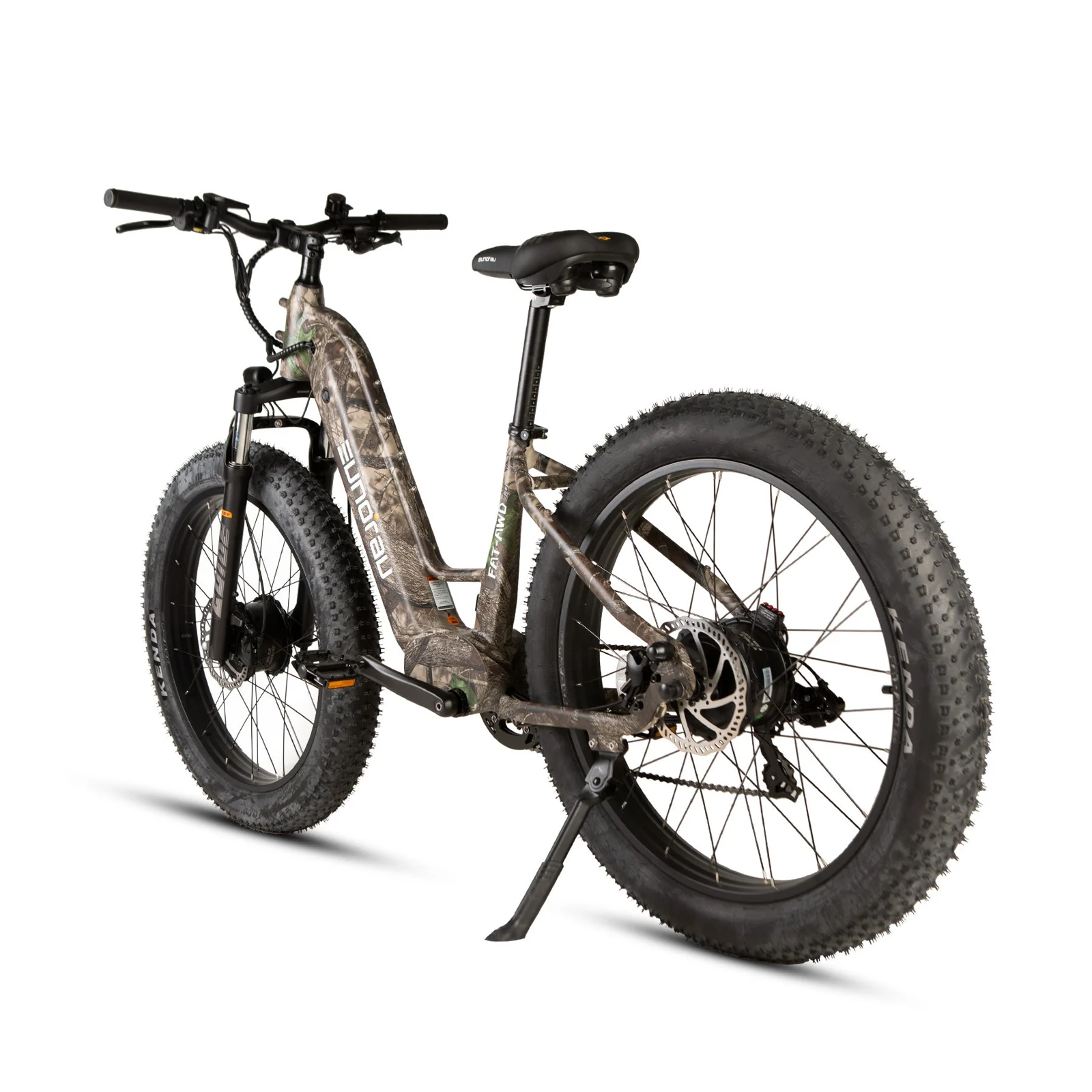

Dual-hub AWD layout
From this angle you can clearly see the rear hub motor while the front-hub drive remains part of the same AWD platform, reinforcing the bike’s traction-first purpose.

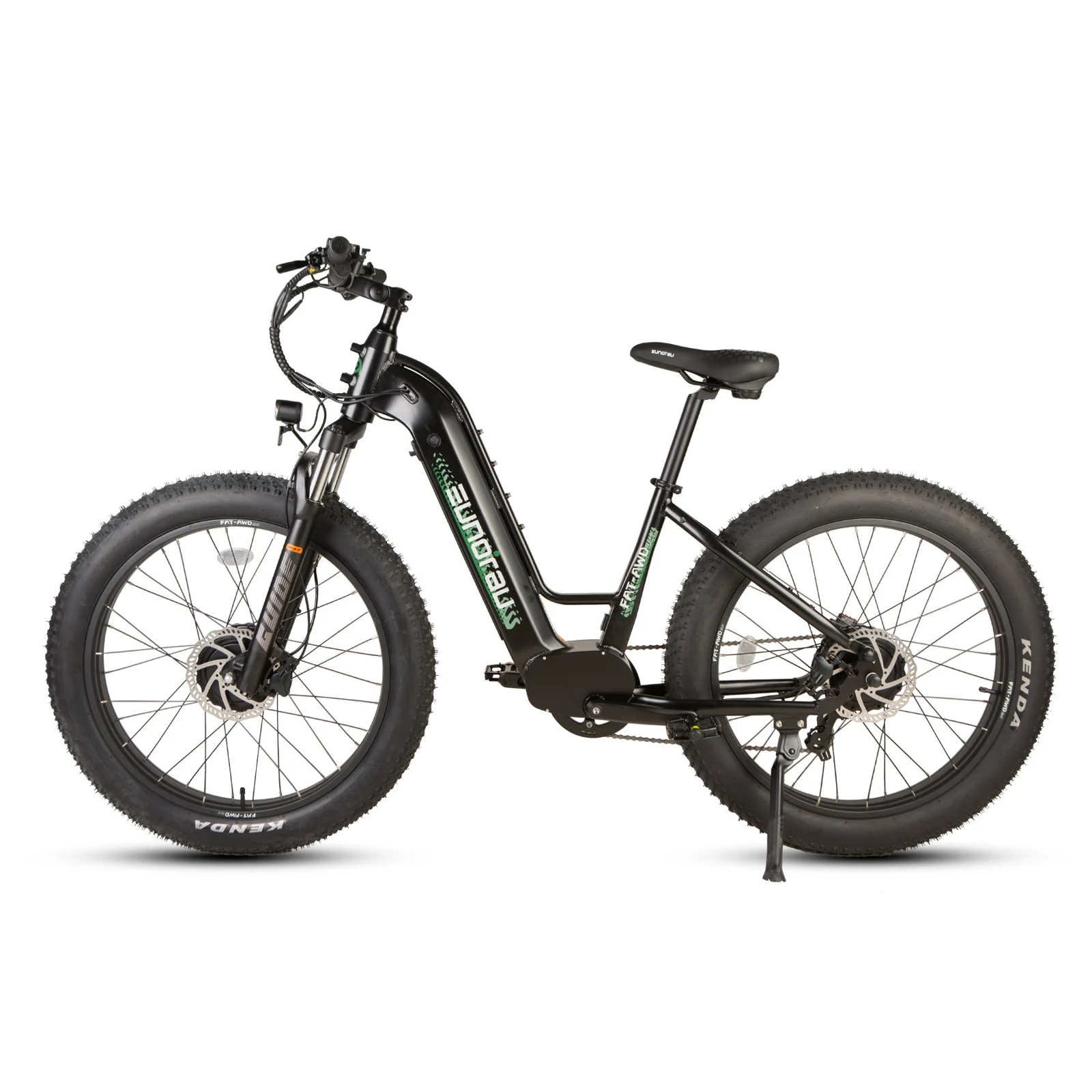

26 x 4.0 inch fat-tire stance
The official product page confirms Kenda Krusade Sport 26 x 4.0 tires, and the broad contact patch is visually obvious across the sold Raven variant imagery.
Suspension fork and upright cockpit
The fork, high-rise cockpit, and adjustable-stem setup support a more planted and less punishing ride posture than a rigid bare-bones off-road build.
Specification
- Motor: Front 48V/500W+Rear 500W Hub motor, MAX 110 N.m
- Battery: 48V 15Ah (Optional Secondary Battery 15Ah)
- Range: 80 Miles (with Secondary Battery 15Ah)
- Battery type: LG Lithium-ion
- Top speed: 20MPH
- Sensor: Torque sensor
- Recommended rider heights: 5'3" ~ 6'1"
- Display: BC182 LCD display, EUNORAU GO App Support
- Charger: Standard 2.0 A smart charger
- Battery charging time: 5 - 7 hours
- Controller: 48V 20A
- Weight: 79.4 lbs
- Total payload capacity: 375 lbs
- Box dimensions: (cm) 159 L x 36 W x 89 H
Components
- Frame: Aluminum alloy 6061
- Tires: KENDA Krusade Sport 26" × 4.0 tires
- Rims: 26inch Black Alloy
- Brake levers: Hydraulic disc brakes levers with motor cutoff switch
- Brake rotors: 180mm hydraulic disc brakes
- Shifter: SHIMANO 7 Speed
- Throttle: Thumb throttle (power at your hand is always available)
- Crank: 170mm forged aluminum alloy
- Chainring: 42T chain-wheel crank
- Freewheel: SHIMANO derailleur 7-speed freewheel
- Saddle: EUNORAU comfortable C7 saddle
- Handlebar: Adjustable Stem for Comfort - Matte Black
- Front light: LED light
- Rear light: LED Light
- Tool: Included

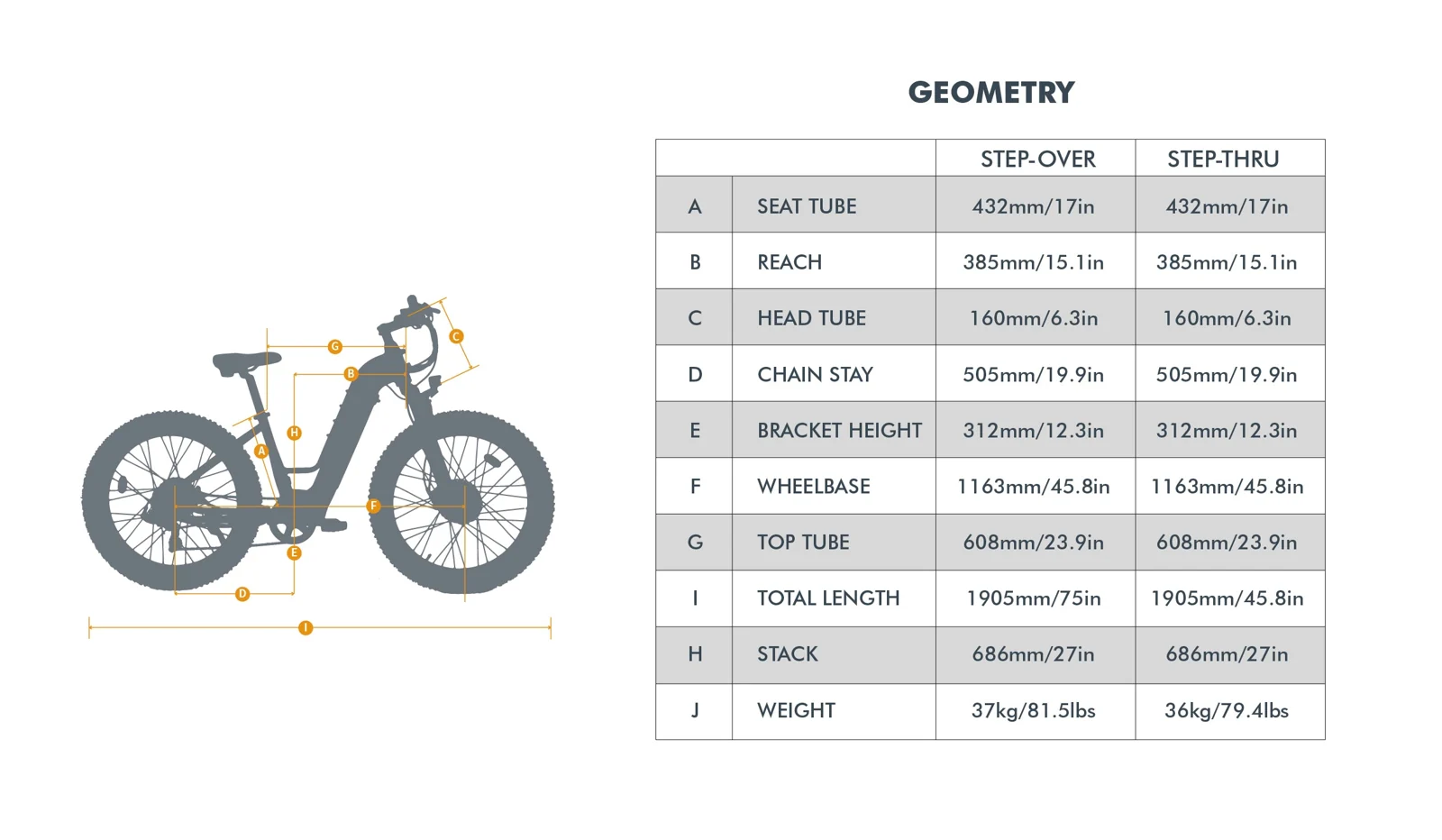

Geometry
The exact official FAT-AWD 3.0 product page currently includes the geometry graphic below. EUNORAU serves the image from a legacy filename, but the asset is still embedded on the live FAT-AWD 3.0 page and is retained here as a support diagram rather than a variation hero.
